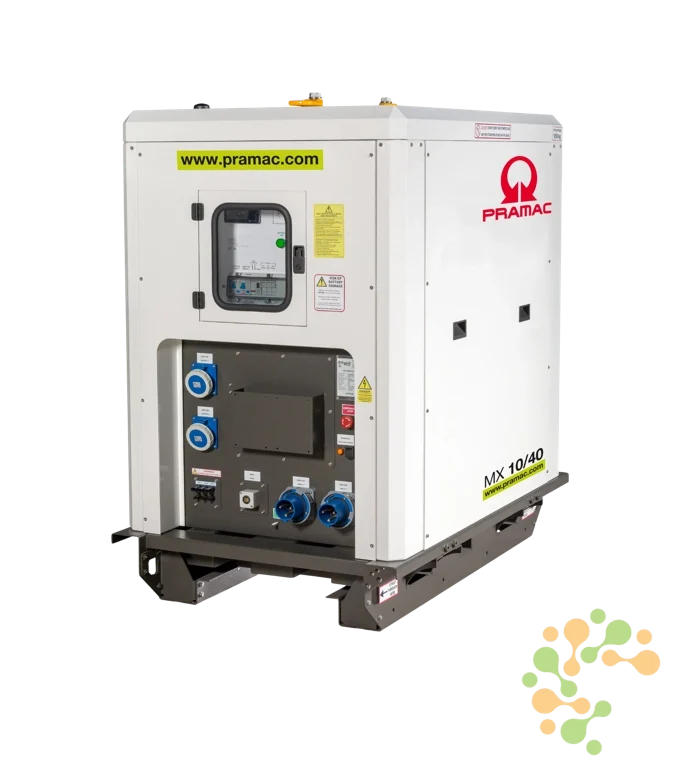

BESS MX 10/40
Mobile battery energy storage system for off-grid, hybrid, solar, generator or grid charging applications.
Wishlist
Wishlist
Description
MX Series – Mobile Energy Storage
Hybrid. Efficient. Built for Flexible Site Power.
The MX 10/40 is a Pramac battery energy storage system designed to support off-grid, hybrid, solar, generator-assisted and grid-connected power applications. It helps reduce generator run hours, fuel consumption and site noise while providing stable power for commercial, rental and industrial environments.
The configured MX 10/40 package combines energy storage, power conversion and control equipment to support Australian 50 Hz site applications. Key configuration details include rated output: continuous 10 kVA, peak 15 kVA, continuous 10 kW, peak 15 kW; electrical configuration: 230 V, 50 Hz, single-phase; battery capacity: 40 kWh.
Key Features
- Model: MX 10/40
- Power rating: continuous 10 kVA, peak 15 kVA, continuous 10 kW, peak 15 kW
- Electrical configuration: 230 V, 50 Hz, single-phase
- Fuel / energy type: Battery / Hybrid
- Battery type: Lead acid gel OPzV-S
- Battery capacity: 40 kWh
- Usable energy: 32 kWh
- Battery cycle life: 2000 cycles
- Dimensions: 1500 x 1000 x 1600 mm
- Weight: 1820 kg
- Designed to support generator hybridisation, load smoothing and reduced engine run hours
These systems suit sites looking to reduce generator runtime, support renewable input, stabilise loads and provide flexible power for construction, events, rental, mining and industrial operations.
Additional information
| Weight | 1820 kg |
|---|---|
| Dimensions | 150 × 100 × 160 cm |
| Brand | Pramac |
| Model | MX 10/40 |
| Product Type | Battery energy storage system |
| Fuel / Energy Type | |
| Phase | |
| Voltage | |
| Frequency | |
| Continuous Output | |
| Battery Type | |
| Battery Capacity | |
| Usable Energy | |
| Dimensions | |
| Weight |
Brand
Pramac
Pramac is a global manufacturer of power generation equipment, delivering reliable portable, standby and industrial generators for residential, commercial and industrial applications. Built for performance and durability, Pramac products are trusted worldwide for dependable backup and prime power solutions. As an authorised Australian distributor, Ozwide Power supplies genuine Pramac generators, parts and expert after-sales support.
