Description

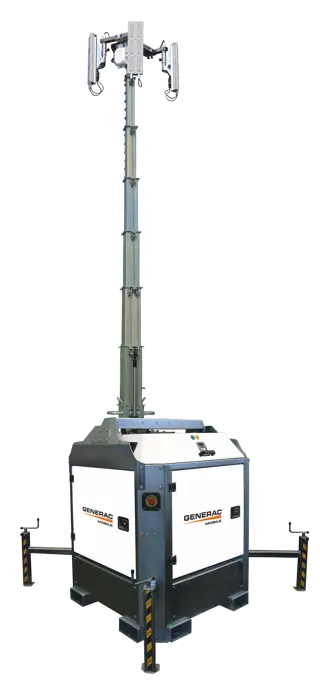

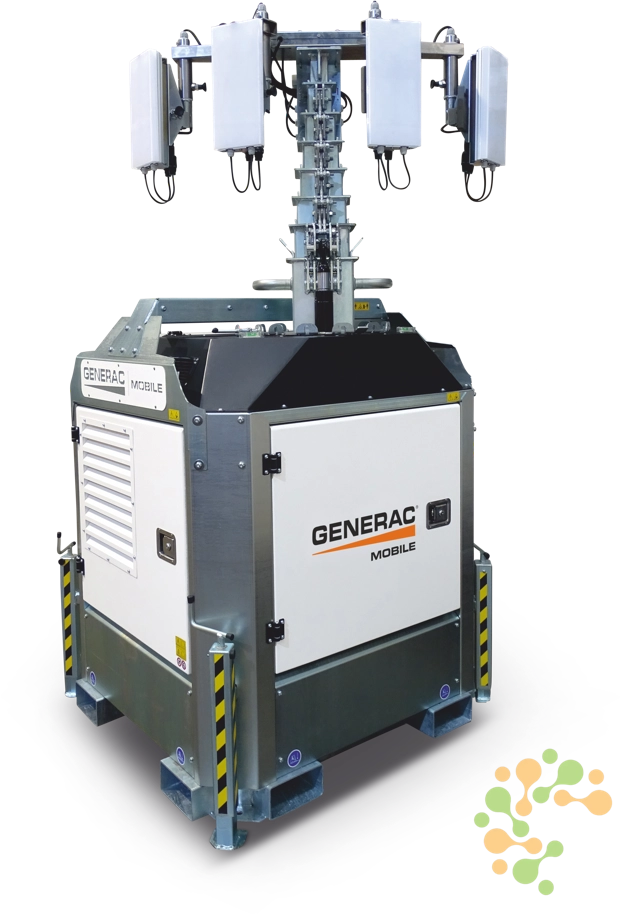

CUBE+ HYPER – 360° Omnia® LED Light Tower
The CUBE+ HYPER is a durable, reliable and efficient lighting tower designed to deliver powerful site illumination with maximum flexibility. Built around Omnia® LED Technology, it allows the operator to aim the floodlights in any directionto achieve true 360° lighting coverage, making it ideal for construction sites, events, civil works, shutdowns and rental fleets. It’s also available with anti-glare floodlights for improved comfort and visibility on site.
With a robust bolted frame, top accessibility for servicing, and practical safety features like safe locking stabilisers and a 110% liquid containment tank, the CUBE+ HYPER is engineered for tough Australian conditions and easy fleet operation.
Key Features
- Omnia® LED Technology with 360° illumination
- GTL01 / DSE digital controller (Depending on Model)
- Bolted frame construction
- Top accessibility for easier maintenance
- Liquid containment tank (110%)
- Safe locking stabilisers
Performance Highlights
- Lighting power: 4 × 320 W Hyper LEDs
- Total light output: 184,000 lumens
- Illuminated area: 4,500 m² / 4,200 m²
- Average sound pressure: 59 dB(A) @ 7 m
- Total running time: 243 hours
Specifications
- Model: CUBE+ Hyper
- Dimensions (min): 1220 × 1150 × 2420 mm
- Dimensions (max): 1790 × 1740 × 8400 mm
- Dry weight: 1070 kg
- Lifting system: Hydraulic
- Mast rotation: 340°
- Engine:Yanmar 2TNV-70, liquid cooled, 2-cylinder
- Engine speed (50/60 Hz): 1500rpm
- Alternator: 5 kVA / 220V / 50Hz
- Outlet socket: 5 kVA / 220V / 50Hz
- Inlet plug: 16A / 220V / 50Hz – 16A / 240V / 60Hz
- Wind resistance: 80 km/h
- Fuel tank capacity: 170 L
- Liquid containment: 110%
Technical Information
| Weight | 1070 kg |
|---|---|
| Dimensions | 122 × 115 × 242 cm |
| Key Specifications | 184,000 lm, 4x320W LED, Diesel, Coverage 4200–4500 m² |
| Engine Model | Yanmar 2TNV-70 |
| Fuel/Power Type | Diesel |
| Fuel tank capacity (L) | |
| Running Time (Hours) | |
| Lifting System | |
| Mast Rotation (°) | |
| Illuminated Area (m²) | |
| Wind Speed Resistance (km/h) | |
| Liquid Containment | |
| Max Total Lumins |
Brand
Generac
