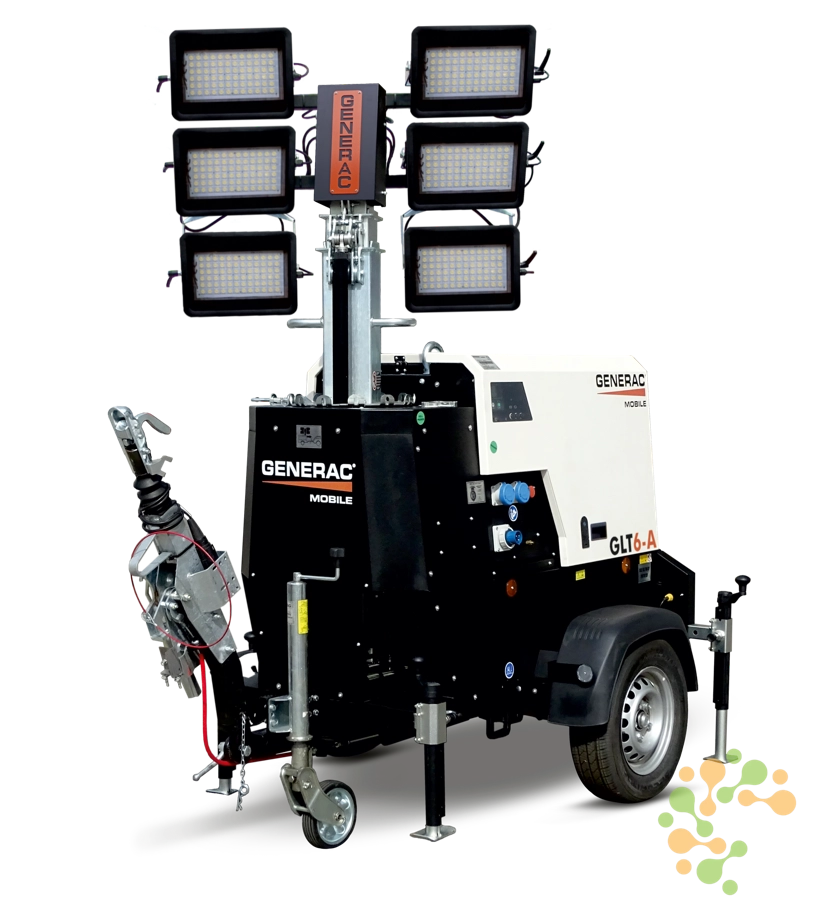

GLT6-A – Compact Six-Lamp LED Lighting Tower

Description

GLT6-A – Compact Six-Lamp LED Lighting Tower

The GLT6-A is a compact and highly manoeuvrable lighting tower designed to deliver powerful illumination, long operating times and easy site deployment. Featuring six high-efficiency LED floodlights, a hydraulic mast lifting system and a fuel-efficient Kubota diesel engine, the GLT6-A is ideal for construction, infrastructure projects, mining support, events and equipment rental fleets.

Designed around a compact footprint, the GLT6-A combines excellent lighting performance with simplified transport and servicing. Wide-access “seagull-wing” doors provide easy maintenance access, while the foldable drawbar and road trailer configuration make transport between sites straightforward and efficient.

Key Features

• 6 × 320W LED floodlights

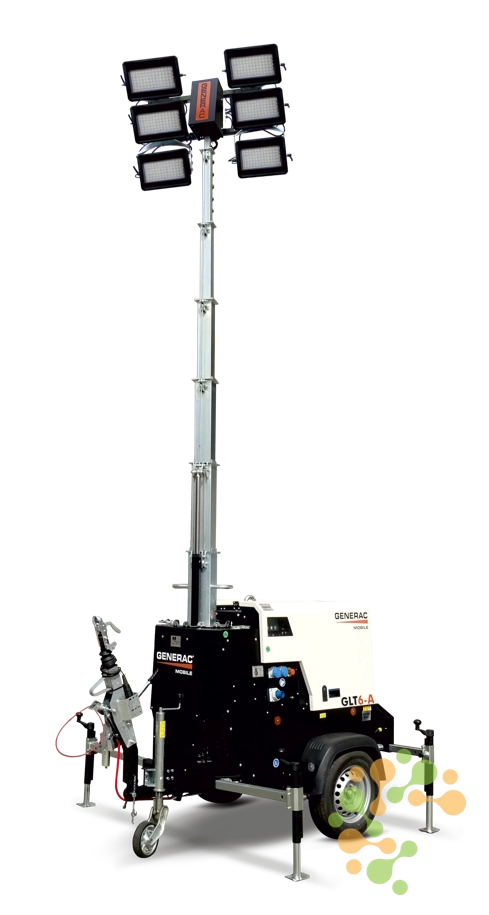

• Hydraulic mast lifting system
• Compact design with seagull-wing access doors

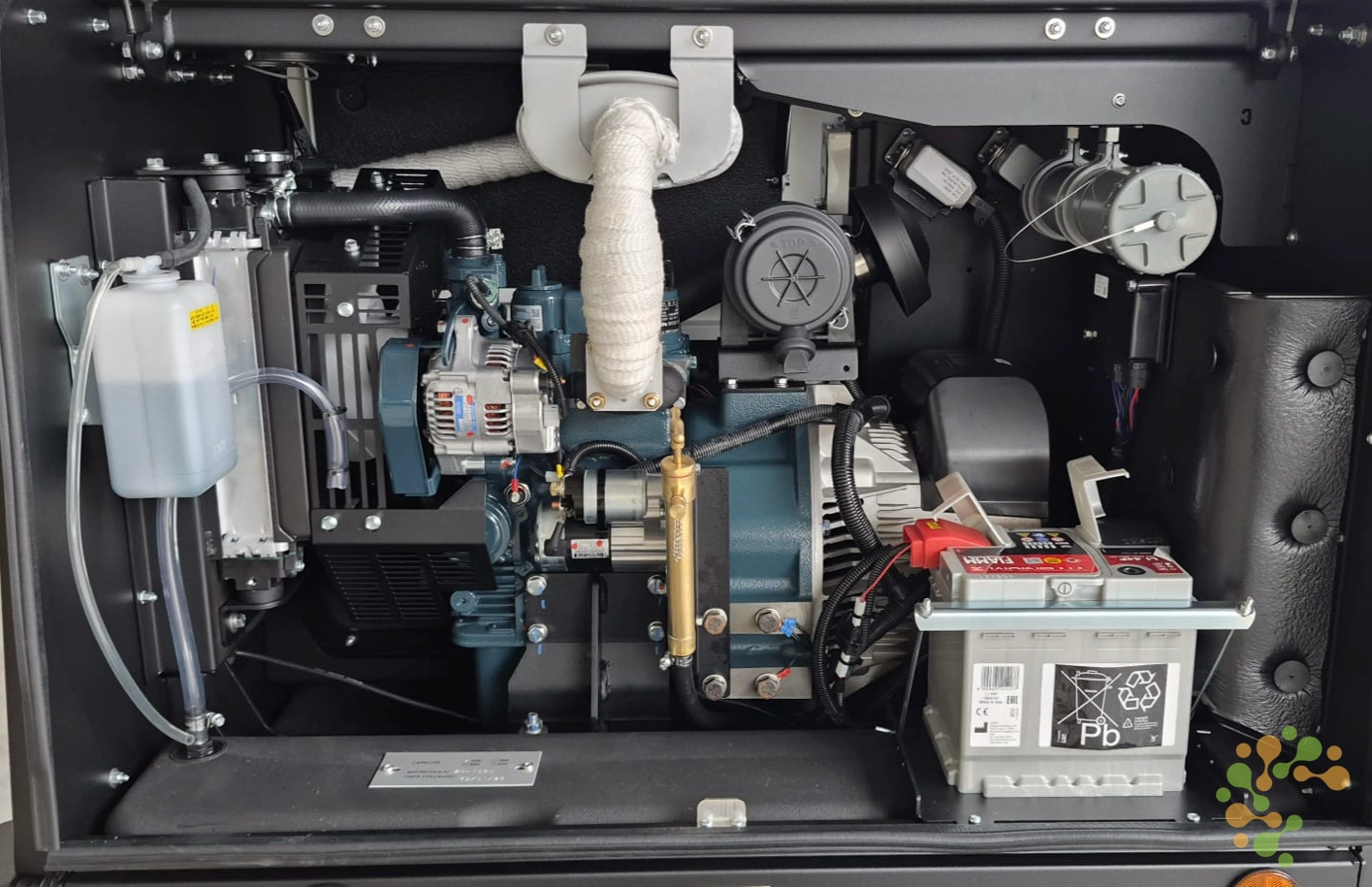

• Fuel-efficient Kubota D1105 3-cylinder diesel engine
• Road trailer with long foldable drawbar for easy transport

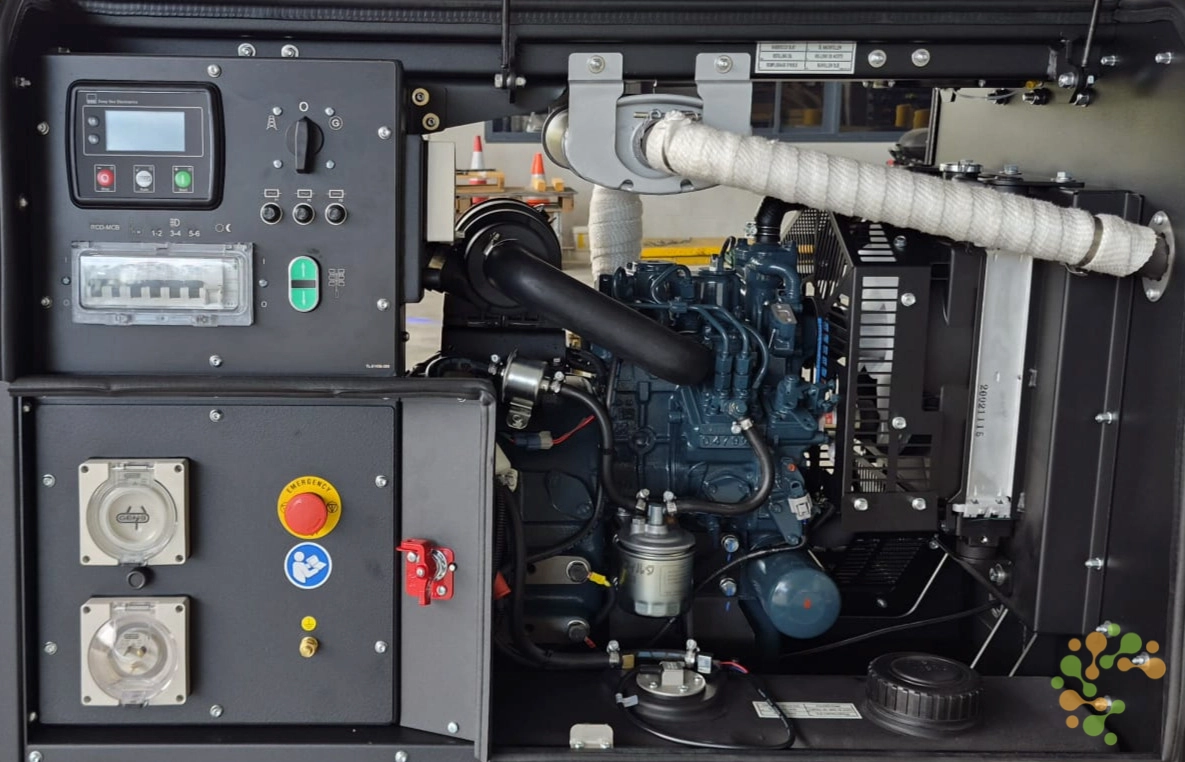

• DSE L401-MKII digital controller
• 2 × 16A outlet sockets
• 16A inlet plug
• Plastic fuel tank with integrated liquid containment

Performance Highlights

• Total luminous flux: 276,000 lm
• Illuminated area (minimum 1 lux): 12,600 m²
• Average sound pressure level: 63 dB(A) @ 7 m
• Operating runtime: up to 140 hours
• Excellent transportability and site manoeuvrability

Specifications

• Minimum dimensions (L × W × H): 2156 × 1400 × 2403 mm
• Maximum dimensions (L × W × H): 3095 × 2166 × 8387 mm
• Dry weight: 1000 kg
• LED floodlights: 6 × 320W
• Total luminous flux: 276,000 lm
• Alternator: 8 kVA (230V / 240V)
• Frequency: 50 / 60 Hz
• Engine model: Kubota D1105
• Engine speed: 1500 / 1800 RPM
• Cylinders: 3
• Engine cooling: Liquid cooled
• Fuel tank capacity (gross / net): 200 / 180 L
• Liquid containment tank: Yes
• Mast lifting system: Hydraulic
• Mast rotation: 340°
• Wind resistance: 110 km/h
