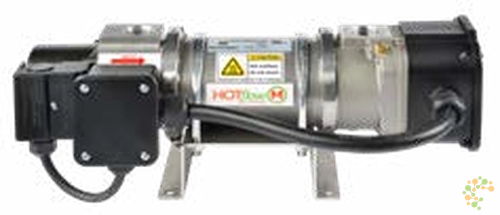

HOTflow® CKM Engine Heater

Description

HOTSTART’s HOTflow® engine heater (CKM Model) is a thermostatically controlled heater with an integrated pump, built in bleed screw and a high-limit thermostat that can be manually reset. The CKM is designed for the technician in mind, allowing for easy access to all major components. Forced circulation of the coolant delivers uniform heating throughout the entire engine, extends element life and offers a significant reduction in electrical consumption. Meets requirements for installation on any UL 2200 listed generator. Single Phase, 3000–6000 Watts. * CE compliant. All other models – UL/C-US recognized.

• Voltage: 230 V
• Phase: 1
• Frequency: 50 Hz
• Power: 3 kW, 4 kW, 5 kW, 6 kW
• Thermostat Range: ON 100 °F (38 °C) / OFF 120 °F (49 °C)
• Dimensions: Height (H) 6.9″ (175 mm), Width (W) 18.4″ (467 mm), Depth (D) 8.5″ (216 mm)
• Weight: 13.2 lbs. (6.0 kg)
• Available configurations: 4 models / SKUs

Select the required option above to order the exact model — each configuration ships as its own HOTSTART part number.
